Boeing E-767 AWACS

Captain Sim

BOEING 767JAPANCARGOAWACSMILITARY

0/5 (0)

The next installment of the exclusive CS Collection of the 767 airframe/engine variants is a digital replica of the Boeing E-767 AWACS.

The E-767 combines the combat-proven radar capabilities of the E-3 Sentry with a massive wide-body cabin, extended range, and superior efficiency to deliver the ultimate long-endurance airborne command center.

EXTERIOR

  • Highly detailed model of the E-767 AWACS
  • Animated Rotodome
  • Main deck cabin with full interior and animated doors
  • Various layouts of optional passenger seats
  • Lower deck with animated cargo doors
  • High resolution 8K textures
  • Realistic animations
  • Cabin with 3D windows, interior and animated Air Force pilots
  • 8K livery of Japan ASDF 84-3504

Also the following immersive animations:

  • Radome
  • Radar antenna
  • Pilots' windows (2)
  • Fwd access door
  • Pitot plugs (4)
  • Emergency doors (2)
  • Service access doors (2)
  • Engine cowlings (8)
  • Engine intake covers (2)
  • Ram air outlets (2)
  • Aft outflow valve
  • APU intake
  • APU cowling
  • Access door
  • Aft access door
  • Wheel chocks
  • E/P hatch
  • E/E door
  • Ram air turbine
  • Bulk cargo door
  • Escape slides (2)

COCKPIT AND CABIN

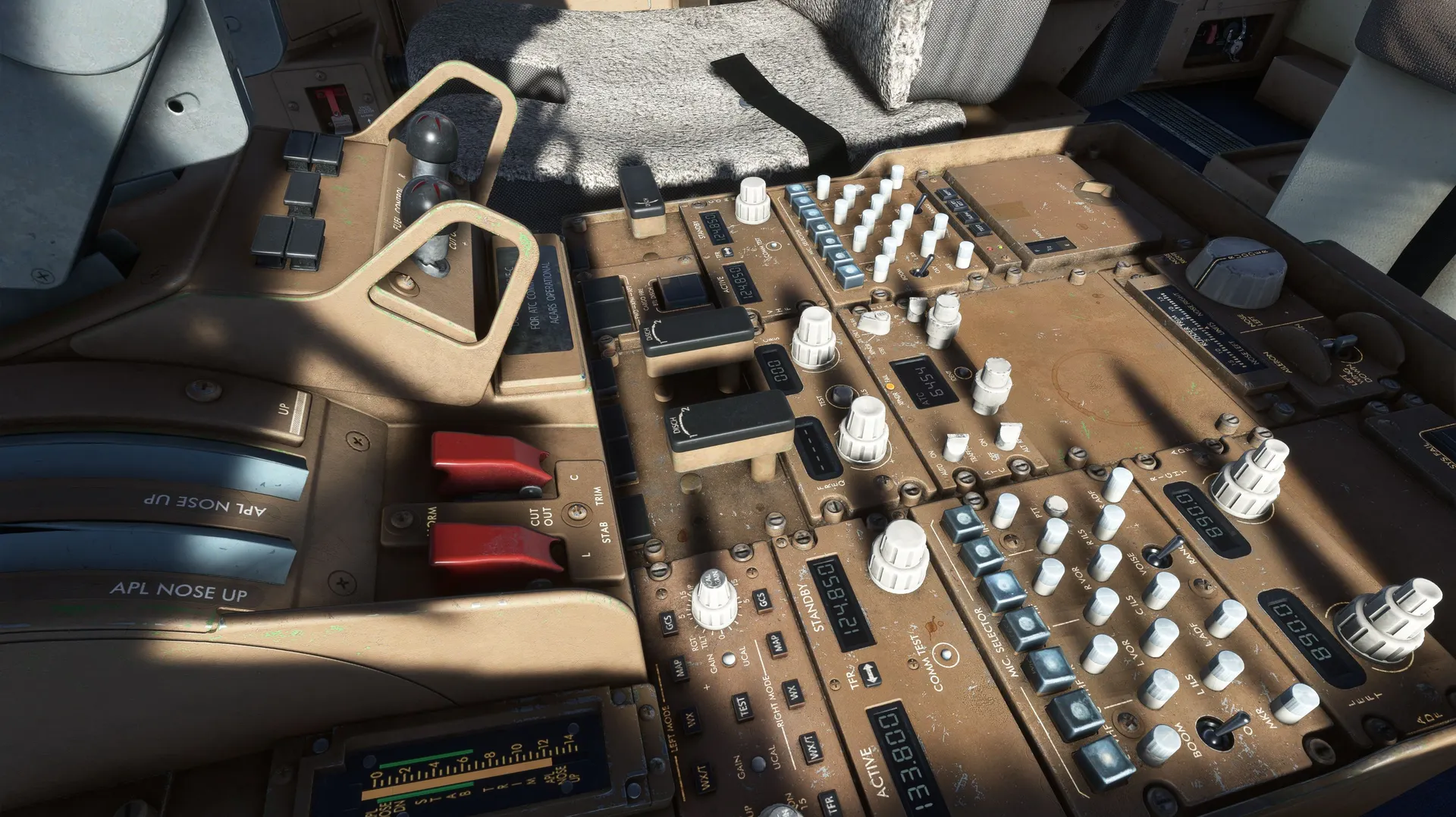

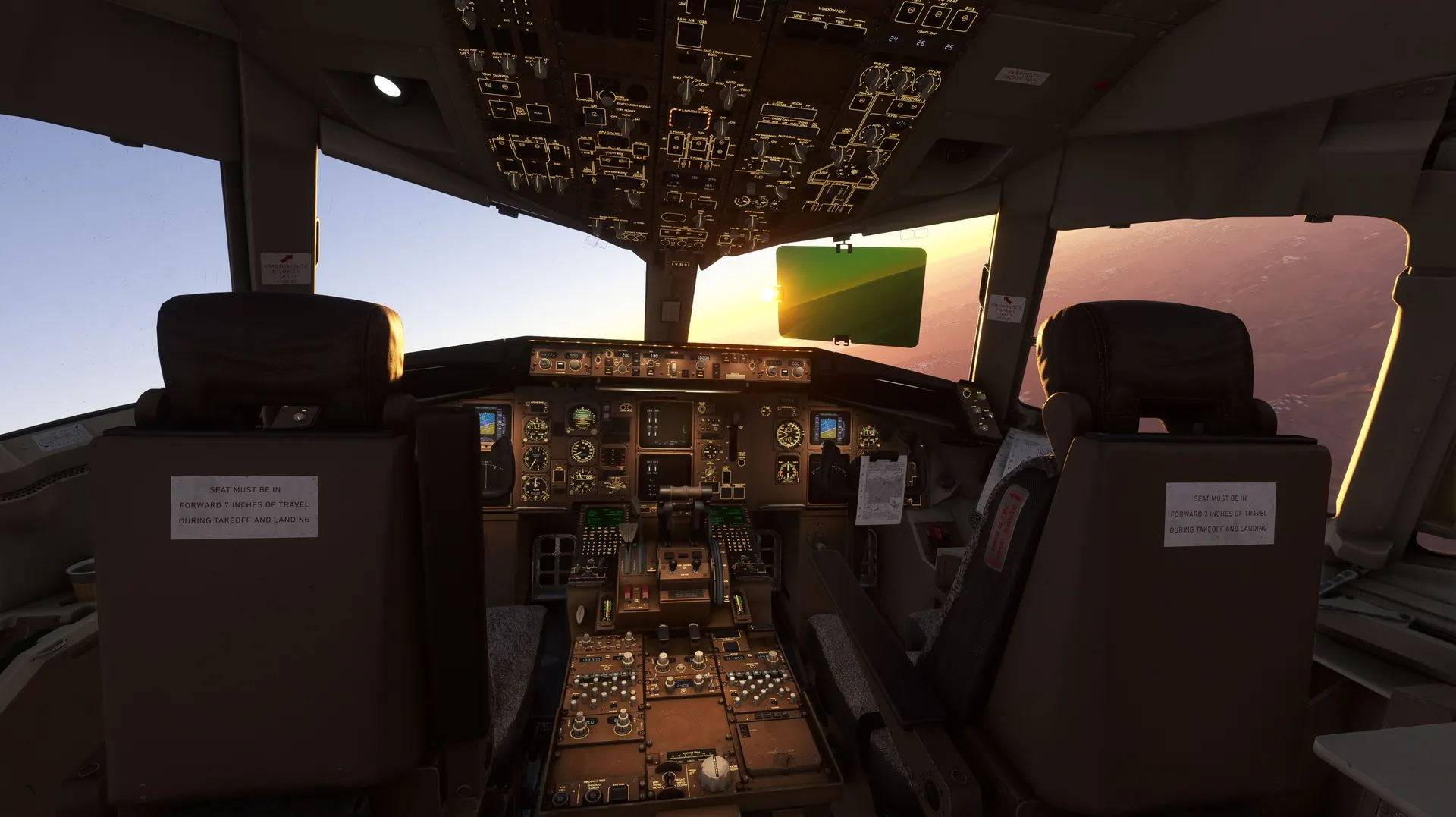

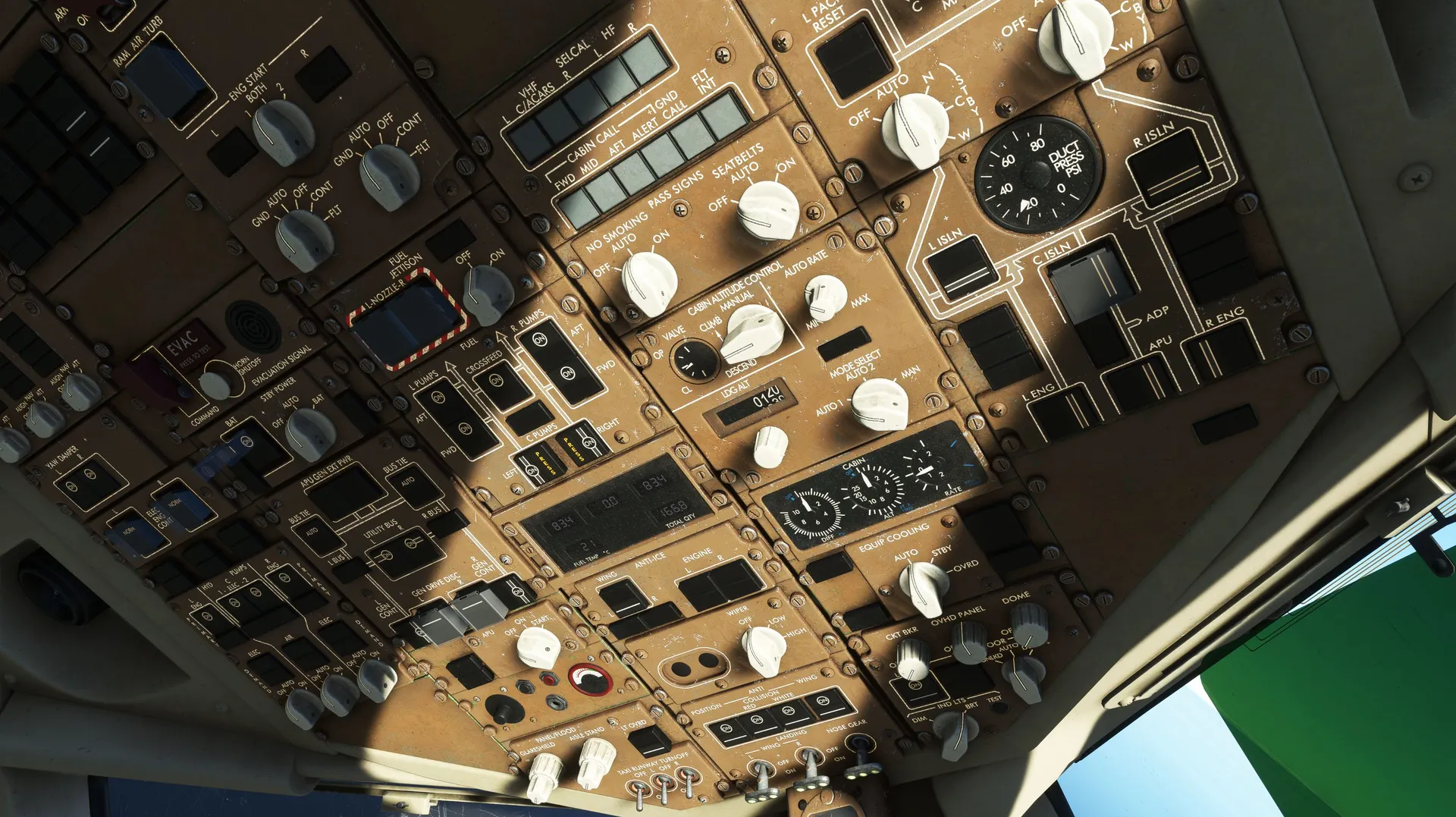

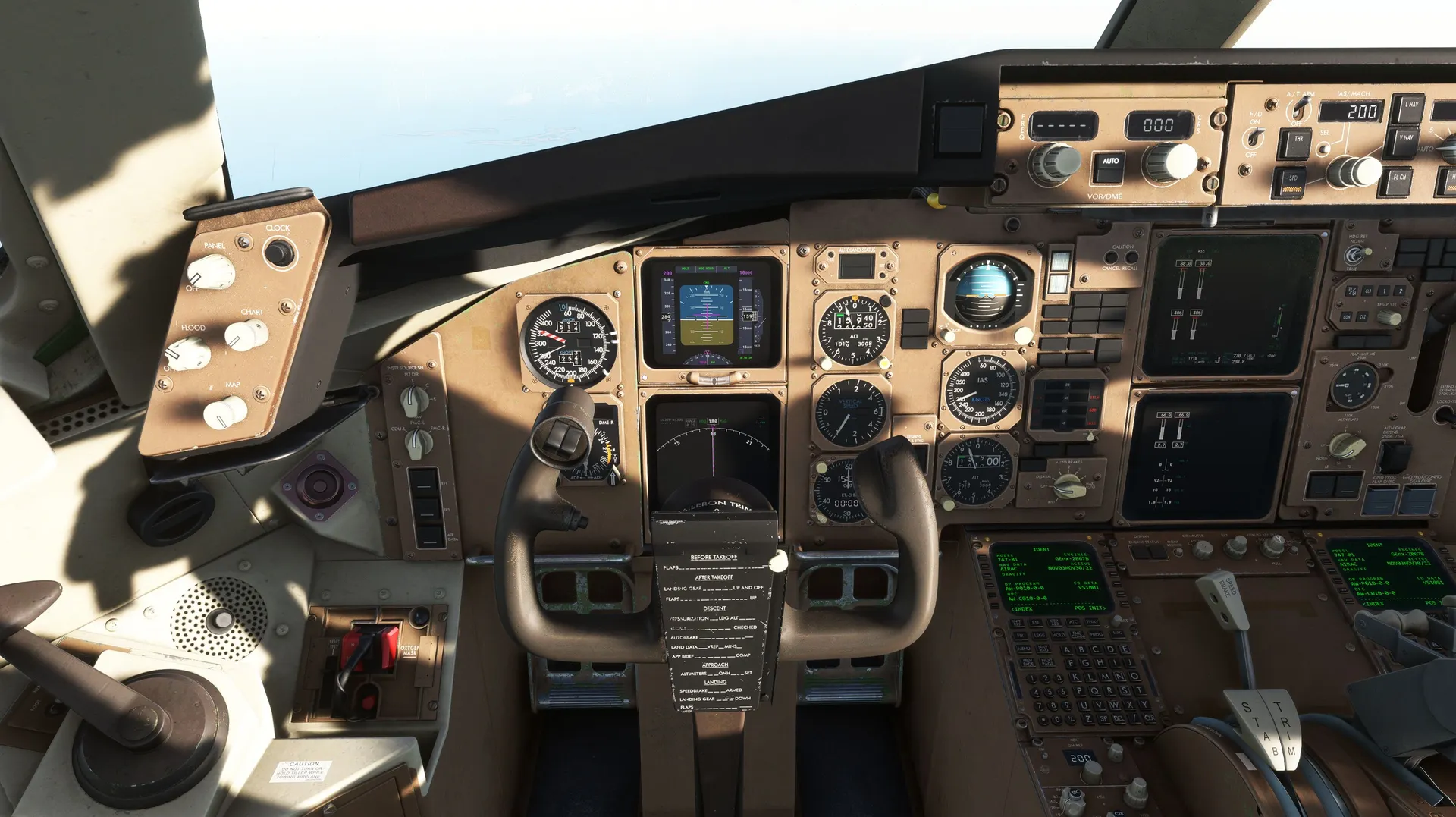

  • Highly detailed and accurate classic 767 flight deck with high resolution textures
  • Essential system functionality simulated
  • Some systems use default 747 (must be installed)
  • EFB animations control page
  • Main deck cabin including various layouts of optional passenger seats
  • Working pilots’ windows
  • Removable sunshades, paper charts, drink cups
  • Realistic adjustable cockpit lighting
  • Custom animations control tablet
  • Custom views including wing views
  • Pilot and co-pilot avatars of your choice

MISC FEATURES

  • Supports most features of MSFS (rain/icing effects and more)

The E-767 is an Airborne Warning and Control System (AWACS) aircraft produced by American aerospace and defense contractor Boeing for the Japan Air Self-Defense Force. The military platform is based on the Boeing 767-200 twin-engine, wide-body commercial jet airliner and comprises radar, ISR (intelligence, surveillance, and reconnaissance) systems, communications systems, and other related systems.

AWACS aircraft use a variety of mechanisms, notably radar, to detect, identify, track, and if necessary, provide targeting information on hostile air and surface entities, including ships, aircraft, vehicles, and other assets. AWACS aircraft have robust communications, command and control (C2), and battlespace management capabilities. They provide critical informational for both offensive and defensive military actions.

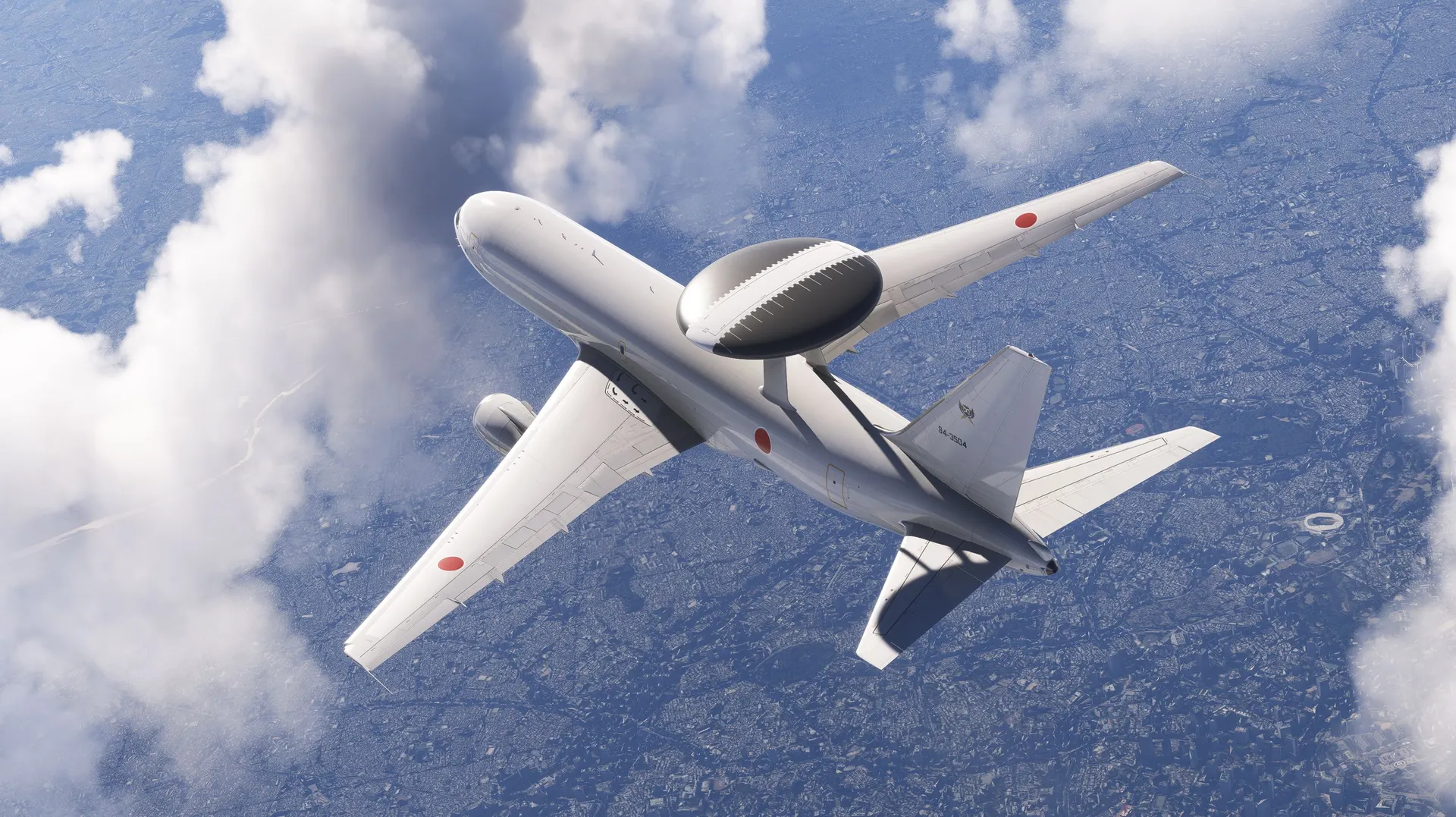

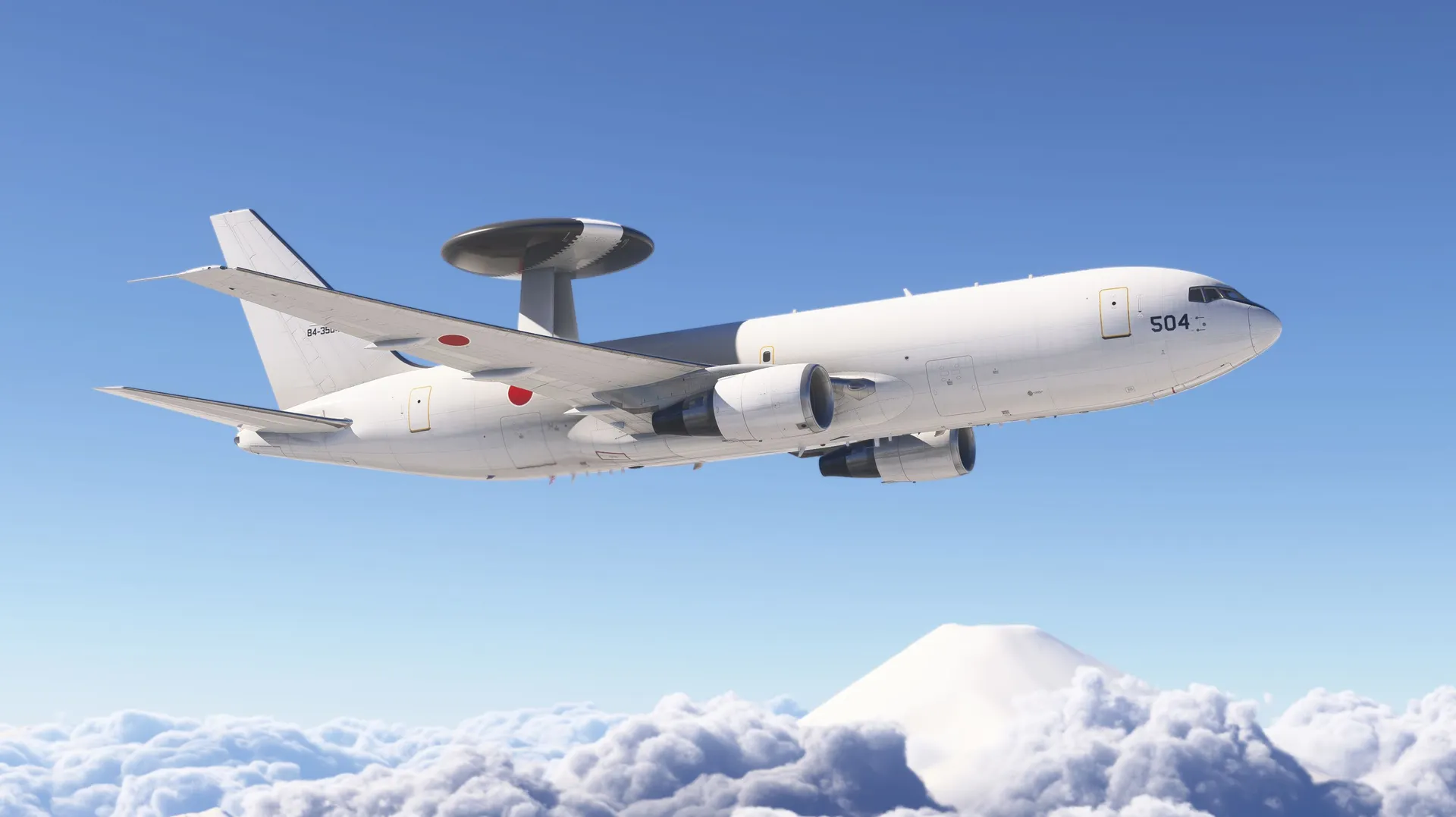

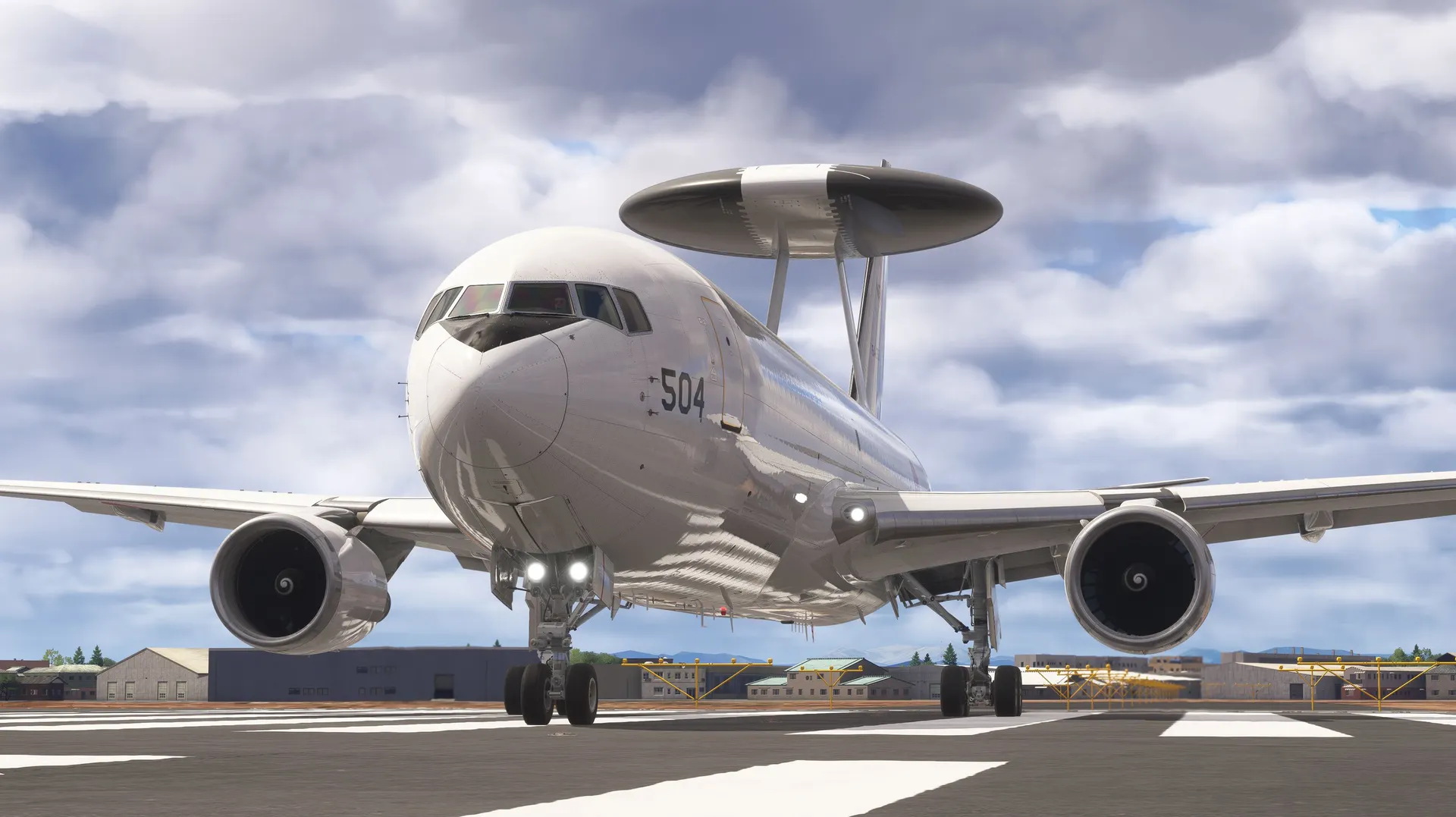

The E-767 AWACS is crewed by two and carries up to 10 personnel to operate the aircraft’s various systems. Its passenger windows are all plugged with aluminum sheeting and the interior is configured to accommodate its systems and personnel. The aircraft has a large circular radome mounted to its rear fuselage, which houses its radar antenna.

The E-767 AWACS measures 159 feet, 2 inches in length, stands 52 feet high, and has a wingspan of 156 feet, 1 inch. It is powered by two General Electric CF6-80C2 high-bypass turbofan engines that each generate up to 61,500 pounds of thrust. The aircraft has an endurance of just over nine hours, a maximum range of 6,440 miles, a service ceiling of 40,000 feet above sea level, and it cruises at 530 miles per hour.
